High Sensitivity 3G/HD-SDI Color Camera "WAT-2200 Mk-2"


   High Sensitivity 1/2.8" BSI CMOS Image Sensor

  Applied the 1/2.8" BSI CMOS image sensor which had been developed sensitivity in the visible light
  and near infrared regions for the industrial equipments.
  The WAT-2200 Mk-2 can be used for the surveillance, machine vision and more various applications.


   Sixteenfold Increase in Sensitivity




   3G/HD-SDI (Full HD 1080/60p & Low Latency)

  The high quality Full HD 1080/60p video is transmitted by a coaxial cable. The uncompressed video of
  SDI signal with low latency is suitable for real-time surveillance, live streaming, monitoring and more.


   Upgraded the Functions Required in the Surveillance Application

    Multiple Exposure-type WDR (Wide Dynamic Range)
  Added the multiple exposure-type WDR function that outputs a clear and usable image which is stabilized   the contrast of light and shadow from 2 different exposure times.




  WDR OFF     WDR ON


   3DNR (3 Dimensions Noise Reduction)
  Added 3DNR function that analyzes the differences as the noise between consecutive frames in order to
  get the clear and usable image. Combining 3DNR and 2DNR enables to effectively obtain an ideal image.



   Support the Pelco-D, Pelco-P and VISCA
  Supporting the industry standard protocol enables the easy detail fuction settings on the OSD.
  Use the optional
CB-03 (serial communication cable) for serial communication.
  *VISCA is a trademark of Sony Corporation.


   Easy Installation

 The analog outputs connector enables to adjust the camera angle and function settings easily via the
 analog monitor without using the HD-SDI peripheral devices.


   Options

 This product exerts the optimum performance with our recommended options.
 Please contact our distributors or dealers. Variety of options are available. >>More Options


  VARIOUS LENSES    SWI12-12-N-P5

We offer lenses maximizing the
performance of the camera.

A power supply adaptor (DC12V)
supporting the camera.


  2.5CHD(BNC/BNC)    VPC-SH5STD

A coaxial cable supporting 3G-SDI available in 2.5m, 3m, 5m or 10m.

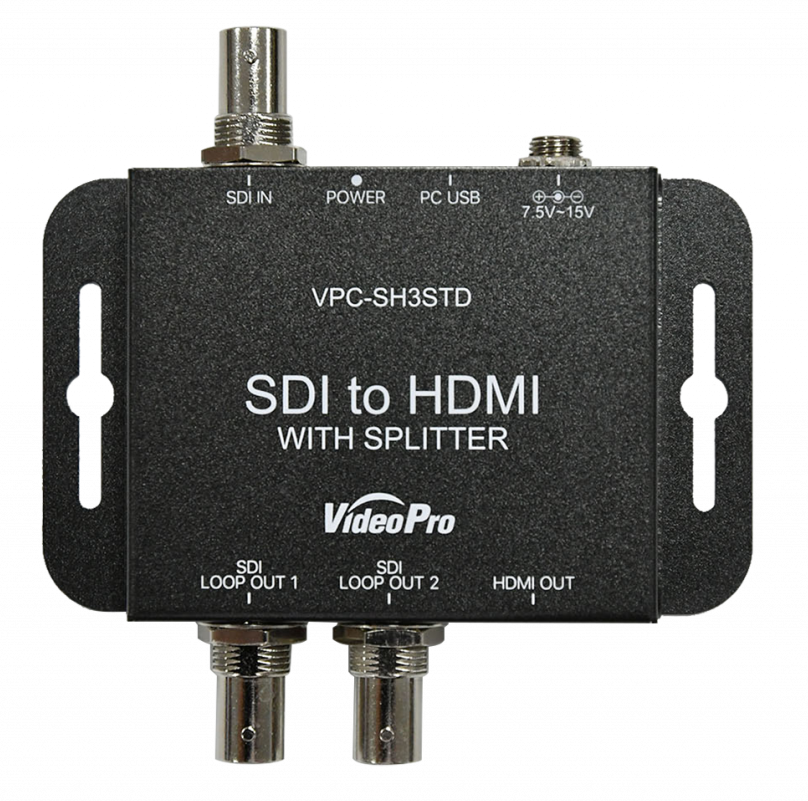

A HD-SDI converter for connecting
the monitor with HDMI input.


  CB-03    VCHO-15S

A serial communication cable to
set the camera function with a PC.

Aluminum dripproof camera housing. *IEC standard IPX5
